1. BV PIANC standard approved
2. Wide range of available sizes
3. Easy to install

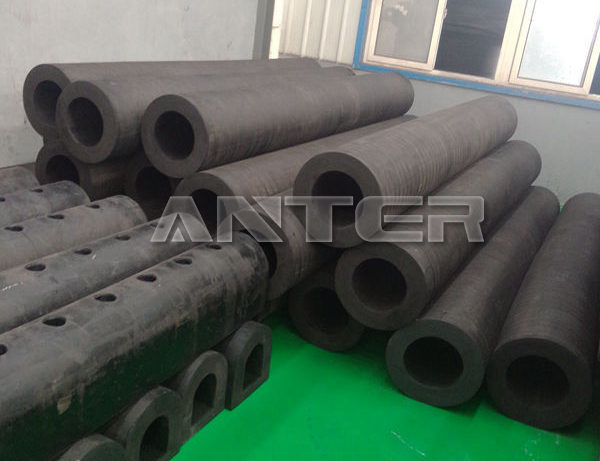

ANTER CY Series Cylinder Rubber Fenders are commonly used fenders recommended for all types of applications to ensure a safe and linear berthing to a variety of vessels. Adequate installation is simply achieved by using chains, bars, ropes or specially designed ladder brackets.

Cylinder Rubber Fender progressive reaction makes them ideal for berths serving large and small vessels. The wide range of available sizes (as well as almost any intermediate size) means cylindrical rubber fenders can be closely matched to each application.

Cylindrical Rubber Fenders proportional increase of reaction force and energy absorption all the way to the rated deflection is an advantage resulting in softer berthing.



2. Key Attributes of Marine Dock Cylinder Fender:



1). Cylinder Rubber Fender : Economical solution to protect most berthing structures

2).  Cylinder Rubber Fender : Less surface pressure, reasonable energy absorption

3).  Cylinder Rubber Fender : Less reaction force at lower deflection

4).  Cylinder Rubber Fender : Thick wall resists abrasion and wear

5）. Cylinder Rubber Fender : Linear load-deflection curve

6）. Cylinder Rubber Fender : Easy to install and maintain



3. Applications of Marine Dock Cylinder Fender:



1. Bulk cargo berths

2. Fishing and workboat berths

3. General cargo quays

4. Pontoons and floating structures

5. RoRo and ferry terminals

6. Tug boats and havens



4. Performance Testing/Test Protocol

ANTER routinely tests fenders to verify their consistent performance and quality. ANTER adopts the latest verification testing protocols defined by PIANC and ASTM to confirm rubber fenders meet the published Rated Performance Data.



Specification
The ratio of outer diameter to inner diameter of standard cylindrical fender is 2:1
